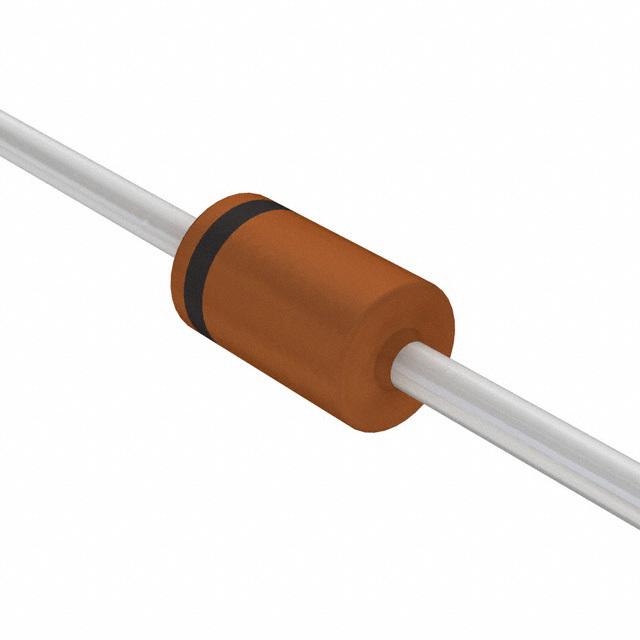

Nexperia USA Inc.-1N4746A,113 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	1N4746A,113	1N4746A,133	1N4747A,113	1N4748A,113	1N4744A,113	1N4745A,113
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.
Product Status	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	18 V	18 V	20 V	22 V	15 V	16 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	1 W	1 W	1 W	1 W	1 W	1 W
Impedance (Max) (Zzt)	20 Ohms	20 Ohms	22 Ohms	23 Ohms	14 Ohms	16 Ohms
Current - Reverse Leakage @ Vr	5 µA @ 13.7 V	5 µA @ 13.7 V	5 µA @ 15.2 V	5 µA @ 16.7 V	5 µA @ 11.4 V	5 µA @ 12.2 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial
Supplier Device Package	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41
