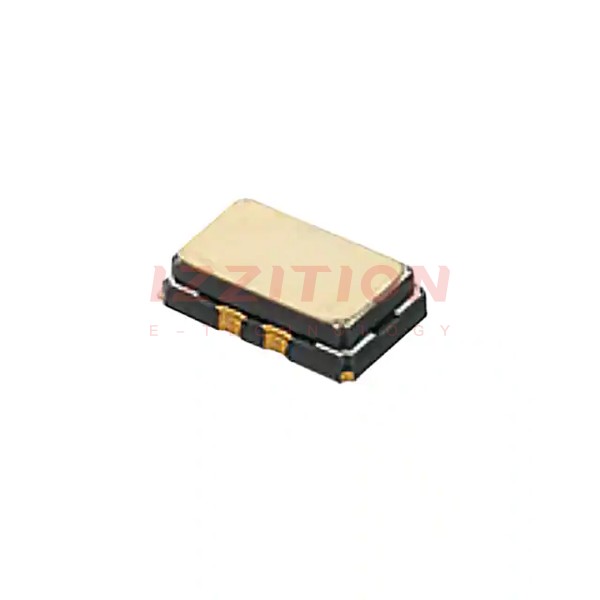

| Part Number | XTCLH25M000THJA0P0 | XTCLH26M000THJA0P0 | XNCLH25M000THJA0P0 | XTCLH20M000THJA0P0 |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Base Resonator | Crystal | Crystal | Crystal | Crystal |
| Type | TCXO | TCXO | TCXO | TCXO |
| Frequency | 25 MHz | 26 MHz | 25 MHz | 20 MHz |
| Function | - | - | - | - |
| Output | Clipped Sine Wave | Clipped Sine Wave | Clipped Sine Wave | Clipped Sine Wave |
| Voltage - Supply | 3V | 3V | 3V | 3V |
| Frequency Stability | ±200ppb | ±200ppb | ±200ppb | ±200ppb |
| Absolute Pull Range (APR) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - |
| Current - Supply (Max) | 2.6mA | 2.6mA | 2.6mA | 2mA |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, No Lead | 8-SMD, No Lead | 8-SMD, No Lead | 8-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
