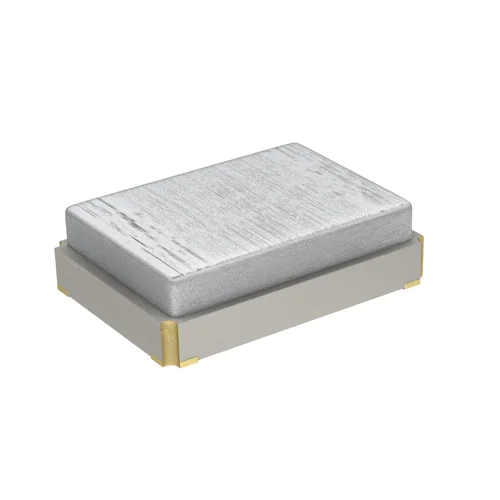

| Part Number | XRCGE25M000FBA1AR0 | XRCGE26M000FBA1AR0 | XRCGE27M000FBA1AR0 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 25 MHz | 26 MHz | 27 MHz |
| Frequency Stability | ±35ppm | ±35ppm | ±35ppm |
| Frequency Tolerance | ±15ppm | ±15ppm | ±15ppm |
| Load Capacitance | 6pF | 6pF | 6pF |
| ESR (Equivalent Series Resistance) | 100 Ohms | 80 Ohms | 80 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
