Please send RFQ , we will respond immediately.

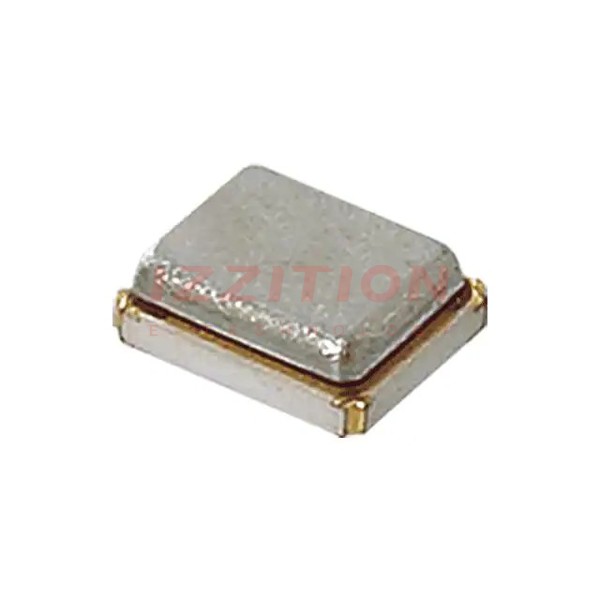

| Part Number | XRCGB26M000F1SBJR0 | XRCGB26M000F1SBLR0 | XRCGB24M000F1SBJR0 | XRCGB26M000F1S1JR0 | XRCGB26M000F1SBAR0 | XRCGB26M000F1SBBR0 | XRCGB26M000F1SBCR0 | XRCGB26M000F1SBDR0 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 26 MHz | 26 MHz | 24 MHz | 26 MHz | 26 MHz | 26 MHz | 26 MHz | 26 MHz |
| Frequency Stability | ±20ppm | ±20ppm | ±20ppm | ±10ppm | ±20ppm | ±20ppm | ±20ppm | ±20ppm |
| Frequency Tolerance | ±10ppm | ±10ppm | ±10ppm | ±10ppm | ±10ppm | ±10ppm | ±10ppm | ±10ppm |
| Load Capacitance | 9pF | 7pF | 9pF | 9pF | 6pF | 8pF | 10pF | 12pF |
| ESR (Equivalent Series Resistance) | 60 Ohms | 60 Ohms | 70 Ohms | 60 Ohms | 60 Ohms | 60 Ohms | 60 Ohms | 60 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -30°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Ratings | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
