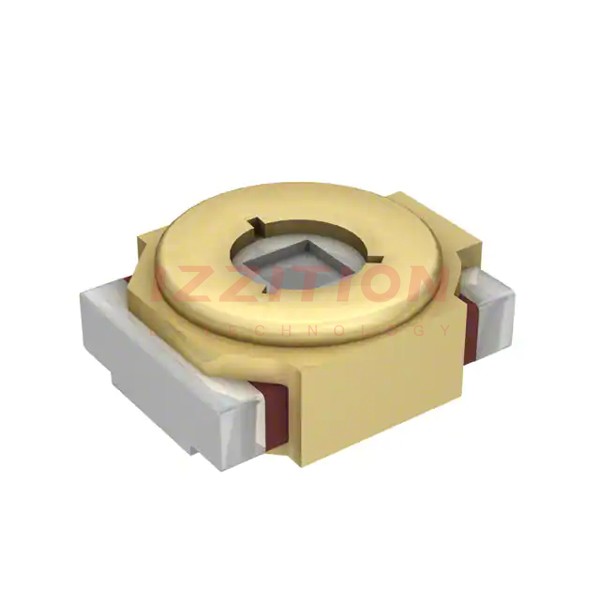

| Part Number | TZY2Z060A001R00 | TZY2Z060AC01R00 | TZS2Z060A001R00 | TZY2Z010A001R00 | TZY2Z030A001R00 | TZY2Z060A001B00 |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance Range | 2.5 ~ 6pF | 2.5 ~ 6pF | 3 ~ 6pF | 0.5 ~ 1pF | 1.5 ~ 3pF | 2.5 ~ 6pF |
| Adjustment Type | Top | Top | Top | Top | Top | Top |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Q @ Freq | 500 @ 1MHz | 500 @ 1MHz | 500 @ 1MHz | 200 @ 200MHz | 300 @ 1MHz | 500 @ 1MHz |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" L x 0.087" W (2.70mm x 2.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.039" (1.00mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Features | General Purpose | General Purpose | Low Profile | General Purpose | General Purpose | General Purpose |
