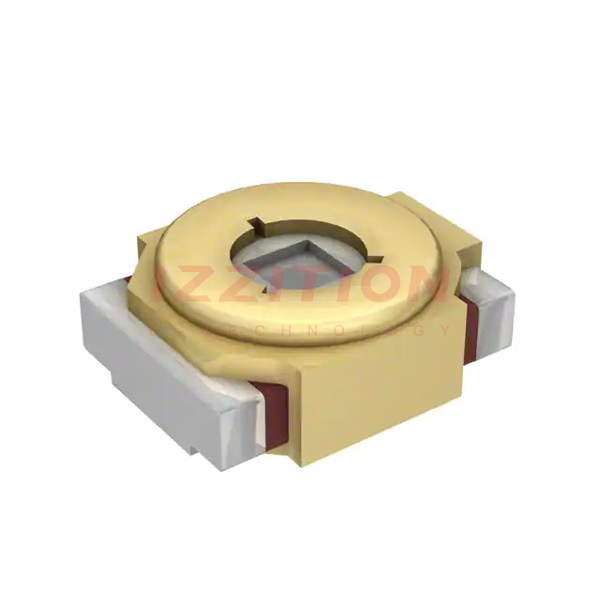

| Part Number | TZY2R250AC01R00 | TZY2R200AC01R00 | TZY2R250A001R00 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance Range | 5.5 ~ 25pF | 4.5 ~ 20pF | 5.5 ~ 25pF |
| Adjustment Type | Top | Top | Top |
| Voltage - Rated | 25 V | 25 V | 25 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic |
| Q @ Freq | 300 @ 1MHz | 500 @ 1MHz | 300 @ 1MHz |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Features | General Purpose | General Purpose | General Purpose |
