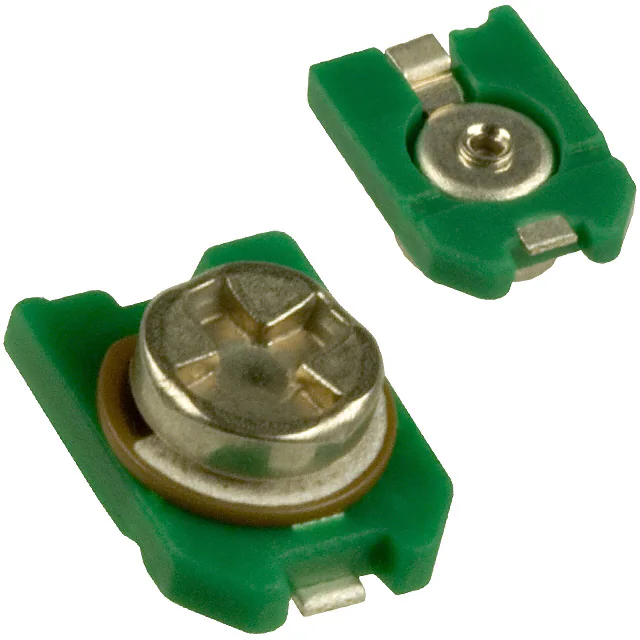

| Part Number | TZC3P300A310R00 | TZC3P200A310R00 | TZC3P300A110R00 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Discontinued at Digi-Key | Obsolete |
| Capacitance Range | 6.5 ~ 30pF | 5 ~ 20pF | 6.5 ~ 30pF |
| Adjustment Type | Top | Top | Top |
| Voltage - Rated | 100 V | 100 V | 100 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic |
| Q @ Freq | 300 @ 1MHz | 300 @ 1MHz | 300 @ 1MHz |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.067" (1.70mm) | 0.067" (1.70mm) | 0.067" (1.70mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Features | General Purpose | General Purpose | General Purpose |
