Please send RFQ , we will respond immediately.

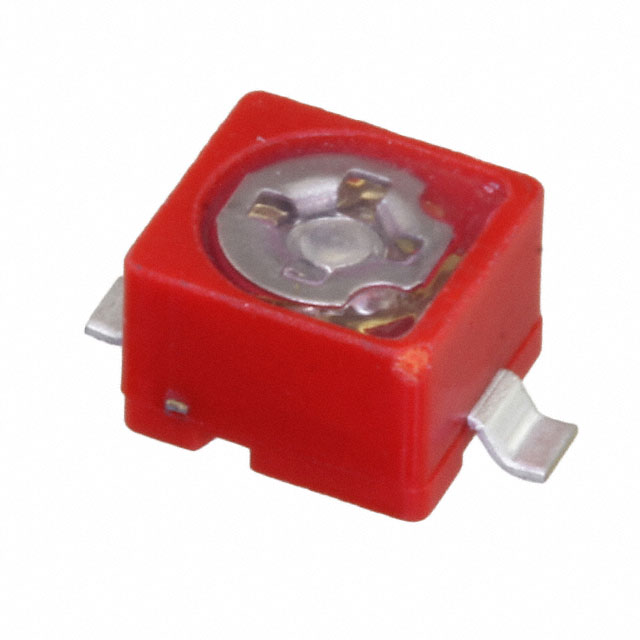

| Part Number | TZB4R200BB10R00 | TZB4R500BB10R00 | TZB4R200AB10R00 | TZB4R200BA10R00 |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance Range | 4.5 ~ 20pF | 7 ~ 50pF | 4.5 ~ 20pF | 4.5 ~ 20pF |
| Adjustment Type | Top | Top | Top | Top |
| Voltage - Rated | 100 V | 50 V | 100 V | 100 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic | Ceramic |
| Q @ Freq | 500 @ 1MHz | 300 @ 1MHz | 500 @ 1MHz | 500 @ 1MHz |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
