Please send RFQ , we will respond immediately.

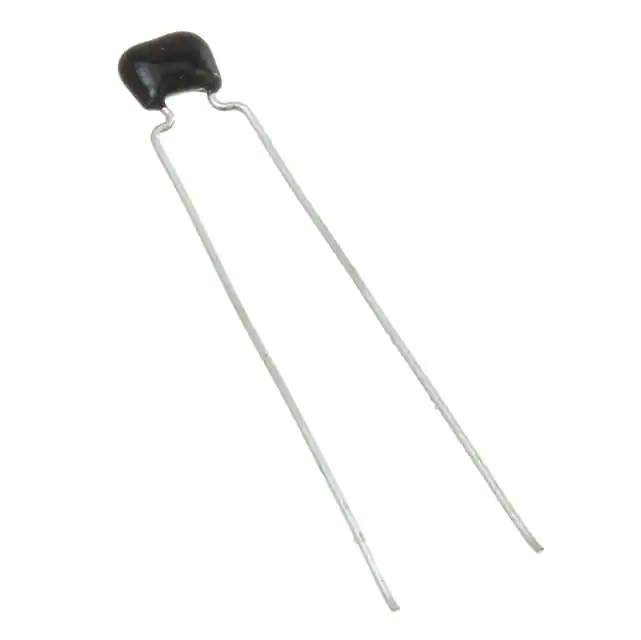

| Part Number | RHS7J2H152J2K1H01B | RHS7J2H102J2K1H01B | RHS7J2H151J2K1H01B |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Capacitance | 1500 pF | 1000 pF | 150 pF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage - Rated | 500V | 500V | 500V |
| Temperature Coefficient | UNJ | UNJ | UNJ |
| Operating Temperature | -55°C ~ 200°C | -55°C ~ 200°C | -55°C ~ 200°C |
| Features | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.197" L x 0.124" W (5.00mm x 3.15mm) | 0.197" L x 0.124" W (5.00mm x 3.15mm) | 0.197" L x 0.124" W (5.00mm x 3.15mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Lead Style | Formed Leads - Kinked | Formed Leads - Kinked | Formed Leads - Kinked |
