Please send RFQ , we will respond immediately.

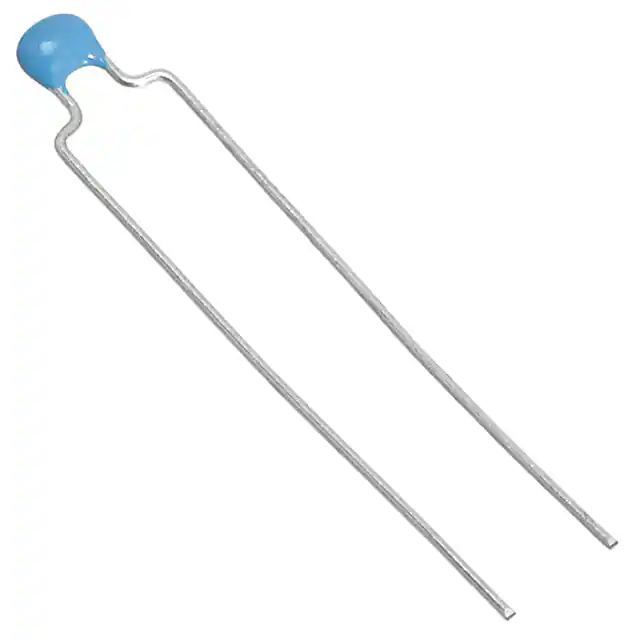

| Part Number | RHEL82A153K1DBA03A | RHEL82A103K1DBA03A | RHEL82A152K1DBA03A |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 0.015 µF | 10000 pF | 1500 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 100V | 100V | 100V |
| Temperature Coefficient | X8L | X8L | X8L |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Features | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.157" L x 0.124" W (4.00mm x 3.15mm) | 0.157" L x 0.124" W (4.00mm x 3.15mm) | 0.157" L x 0.098" W (4.00mm x 2.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.157" (4.00mm) | 0.197" (5.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Lead Style | Straight | Straight | Straight |
