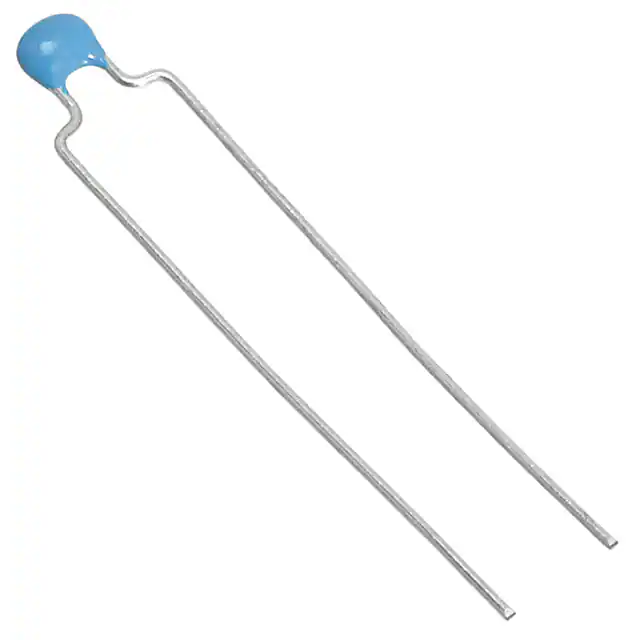

| Part Number | RHE5G1H221J1M1A03A | RHE5G1H271J1M1A03A | RHE5G1H821J1M1A03A | RHE5G1H121J1M1A03A |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 220 pF | 270 pF | 820 pF | 120 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 50V | 50V | 50V | 50V |
| Temperature Coefficient | X8G | X8G | X8G | X8G |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Features | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.157" L x 0.098" W (4.00mm x 2.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Lead Style | Formed Leads - Kinked | Formed Leads - Kinked | Formed Leads - Kinked | Formed Leads - Kinked |
