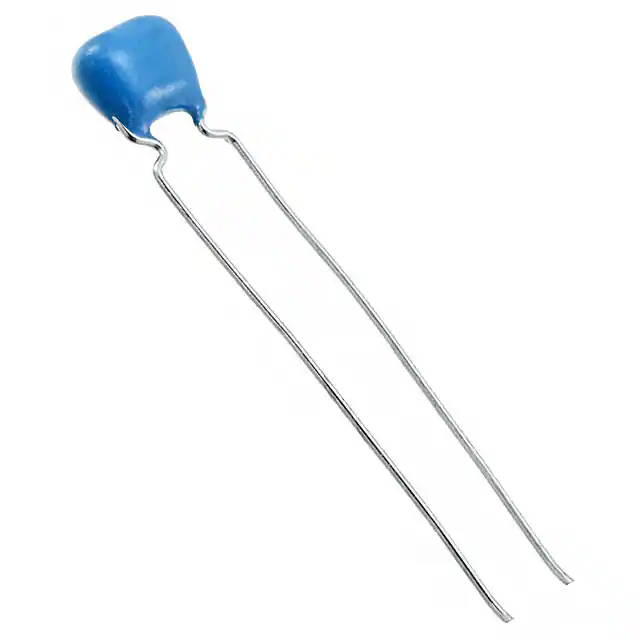

| Part Number | RDER73A103K2M1H03A | RDER73A103K3M1H03A | RDER73A102K2M1H03A |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Not For New Designs | Active |
| Capacitance | 10000 pF | 10000 pF | 1000 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Temperature Coefficient | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.217" L x 0.124" W (5.50mm x 3.15mm) | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.217" L x 0.124" W (5.50mm x 3.15mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.295" (7.50mm) | 0.157" (4.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Lead Style | Formed Leads - Kinked | Formed Leads | Formed Leads |
