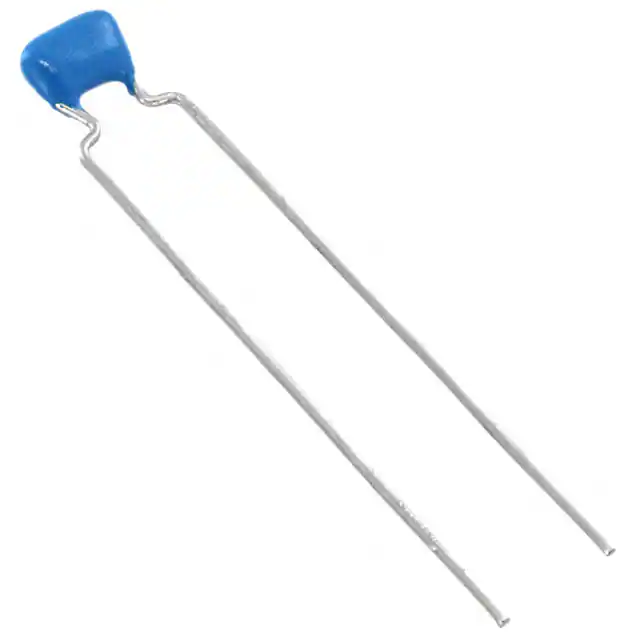

| Part Number | RDER72A154K2P1H03B | RDER72A154K2K1H03B | RDER72A154K2P1C03B |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Obsolete |
| Capacitance | 0.15 µF | 0.15 µF | 0.15 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 100V | 100V | 100V |
| Temperature Coefficient | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.217" L x 0.124" W (5.50mm x 3.15mm) | 0.217" L x 0.124" W (5.50mm x 3.15mm) | 0.157" L x 0.098" W (4.00mm x 2.50mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.098" (2.50mm) |
| Lead Style | Formed Leads | Formed Leads - Kinked | Formed Leads |
