Please send RFQ , we will respond immediately.

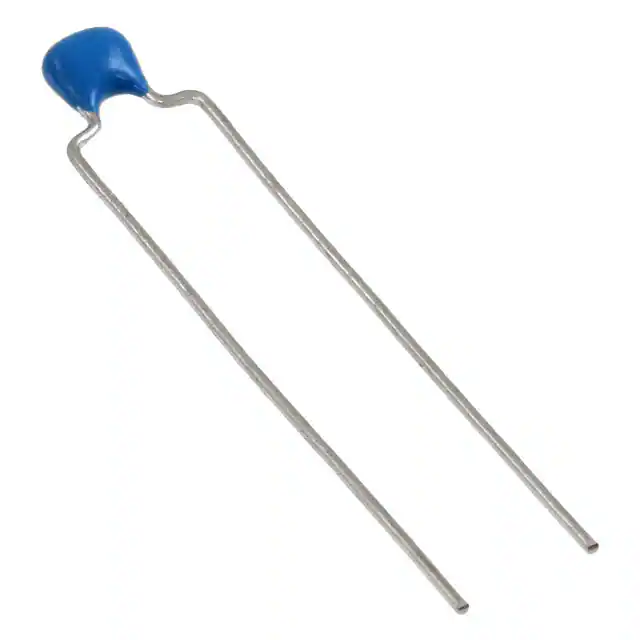

| Part Number | RDE5C2A222J1M1C03A | RDE5C2A222J1M1H03A | RDE5C2A222J1S1C03A | RDE5C2A272J1M1C03A |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Capacitance | 2200 pF | 2200 pF | 2200 pF | 2700 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 100V | 100V | 100V | 100V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.177" L x 0.124" W (4.50mm x 3.15mm) | 0.177" L x 0.124" W (4.50mm x 3.15mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.177" L x 0.124" W (4.50mm x 3.15mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.197" (5.00mm) |
| Lead Style | Formed Leads - Kinked | - | Formed Leads - Kinked | Formed Leads - Kinked |
