Please send RFQ , we will respond immediately.

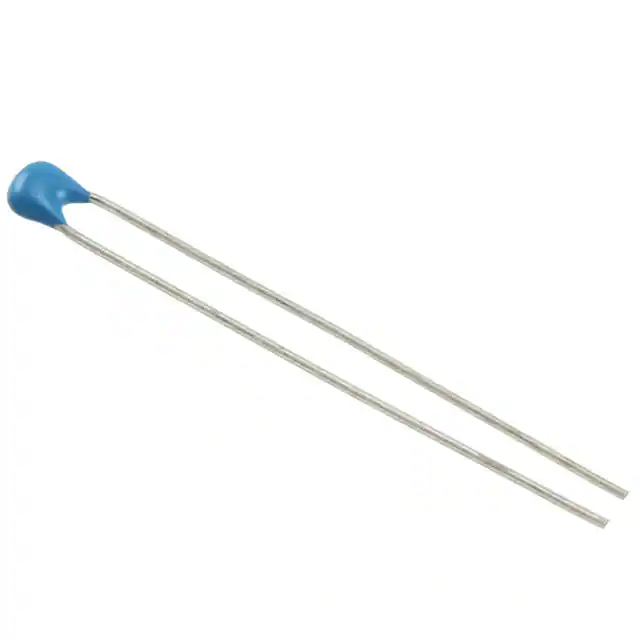

| Part Number | RCER71H222K0A2H03B | RCER71H223K0A2H03B | RCER71H221K0A2H03B |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Capacitance | 2200 pF | 0.022 µF | 220 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 50V | 50V | 50V |
| Temperature Coefficient | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.142" L x 0.098" W (3.60mm x 2.50mm) |
| Height - Seated (Max) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Lead Style | Straight | Straight | Straight |
