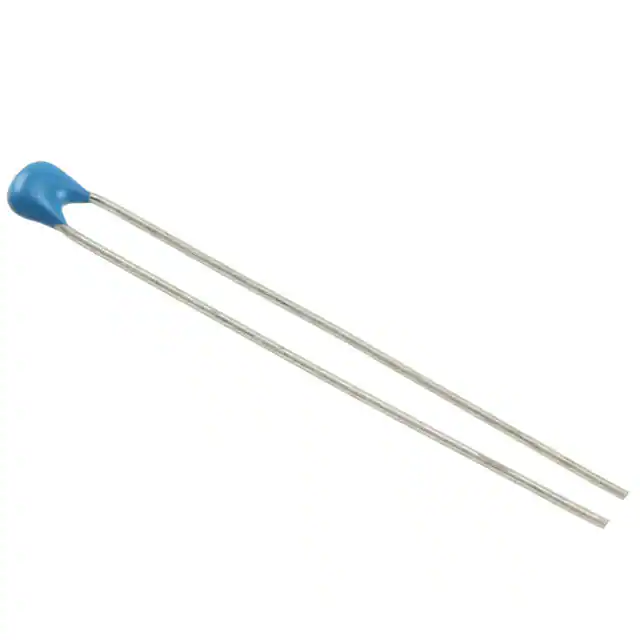

| Part Number | RCE5C1H391J0A2H03B | RCE5C1H392J0A2H03B | RCE5C1H331J0A2H03B | RCE5C1H390J0A2H03B |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Capacitance | 390 pF | 3900 pF | 330 pF | 39 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 50V | 50V | 50V | 50V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.142" L x 0.098" W (3.60mm x 2.50mm) |
| Height - Seated (Max) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Lead Style | Straight | Straight | Straight | Straight |
