Please send RFQ , we will respond immediately.

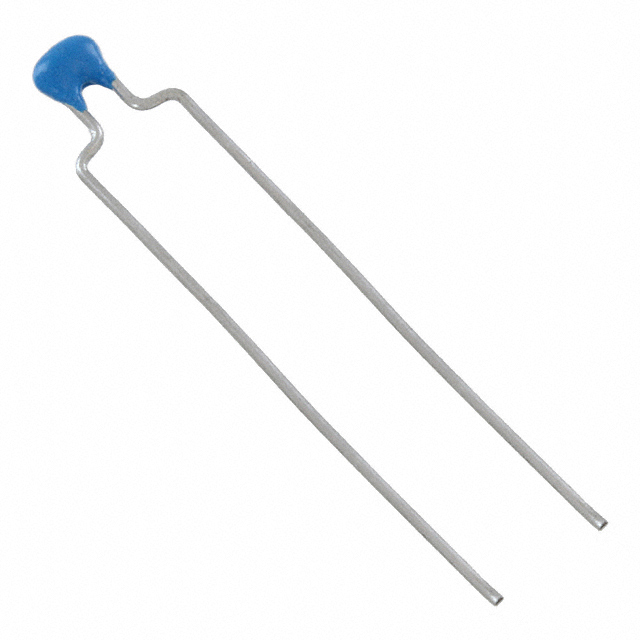

| Part Number | RCE5C1H120J0M1H03A | RCE5C1H180J0M1H03A | RCE5C1H121J0M1H03A | RCE5C1H122J0M1H03A | RCE5C1H220J0M1H03A | RCE5C1H150J0M1H03A | RCE5C1H100J0M1H03A |
|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 12 pF | 18 pF | 120 pF | 1200 pF | 22 pF | 15 pF | 10 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.142" L x 0.098" W (3.60mm x 2.50mm) |
| Height - Seated (Max) | - | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Thickness (Max) | - | - | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Lead Style | - | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads |
