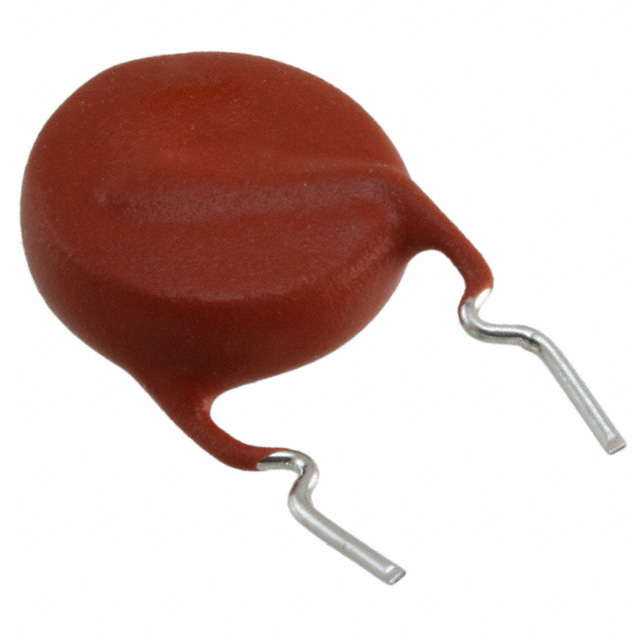

| Part Number | PTGL12AS0R8K2B51A0 | PTGL12AS0R8K2B51B0 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Ceramic | Ceramic |
| Voltage - Max | 30V | 30V |
| Current - Max | 7 A | 7 A |
| Current - Hold (Ih) (Max) | 867 mA | 867 mA |
| Current - Trip (It) | 1.153 A | 1.153 A |
| Time to Trip | - | - |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | 800 mOhms | 800 mOhms |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 0.650" (16.50mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
