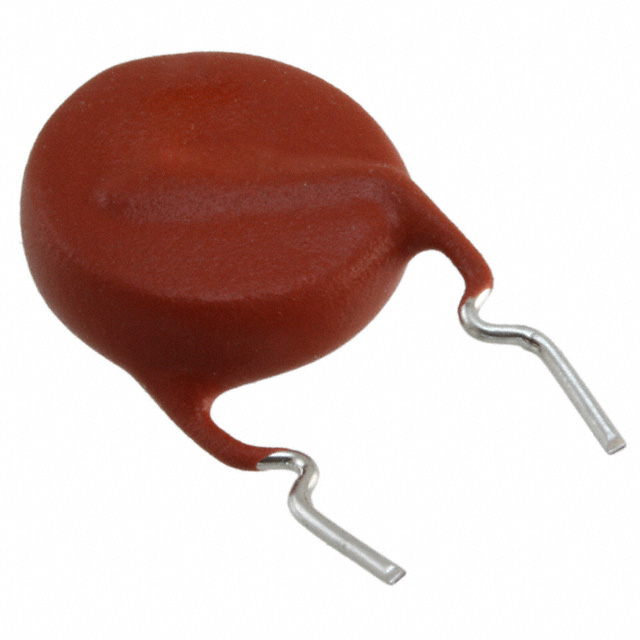

| Part Number | PTGL10ARR27M1B51B0 | PTGL10ARR27M1B51A0 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Ceramic | Ceramic |
| Voltage - Max | 16V | 16V |
| Current - Max | 8 A | 8 A |
| Current - Hold (Ih) (Max) | 1.025 A | 1.025 A |
| Current - Trip (It) | 1.9 A | 1.9 A |
| Time to Trip | - | - |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | 270 mOhms | 270 mOhms |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.398" Dia x 0.138" T (10.10mm x 3.50mm) | 0.398" Dia x 0.138" T (10.10mm x 3.50mm) |
| Height - Seated (Max) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
