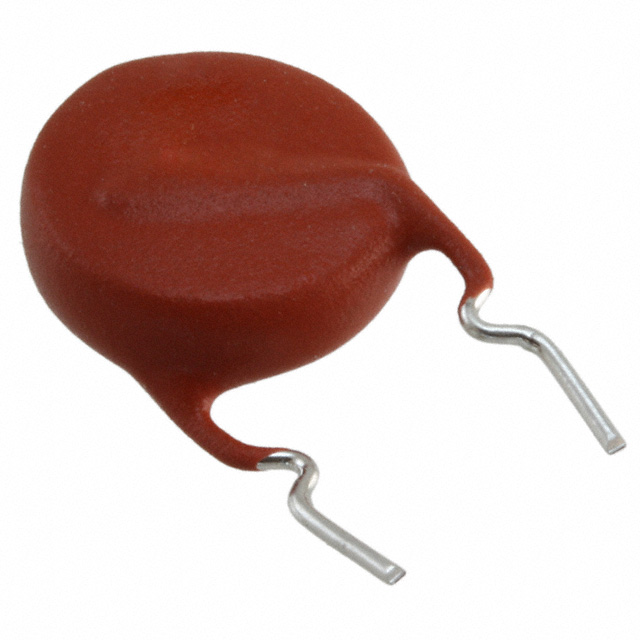

| Part Number | PTGL10AR3R9M3B51A0 | PTGL10AR3R9M3B51B0 | PTGL10AR3R9M3P51A0 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic |
| Voltage - Max | 56V | 56V | 56V |
| Current - Max | 2 A | 2 A | 2 A |
| Current - Hold (Ih) (Max) | 390 mA | 390 mA | 260 mA |
| Current - Trip (It) | 680 mA | 680 mA | 470 mA |
| Time to Trip | - | - | - |
| Resistance - Initial (Ri) (Min) | - | - | - |
| Resistance - Post Trip (R1) (Max) | - | - | - |
| Resistance - 25°C (Typ) | 3.9 Ohms | 3.9 Ohms | 3.9 Ohms |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C | -10°C ~ 60°C |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.413" Dia x 0.157" T (10.50mm x 4.00mm) | 0.413" Dia x 0.157" T (10.50mm x 4.00mm) | 0.413" Dia x 0.157" T (10.50mm x 4.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
