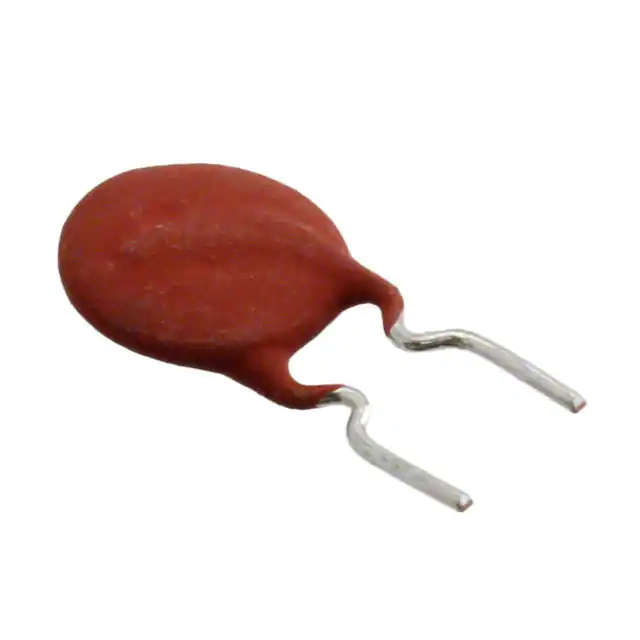

| Part Number | PTGL09BD2R2N2B51B0 | PTGL09BD2R2N2B51A0 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Ceramic | Ceramic |
| Voltage - Max | 24V | 24V |
| Current - Max | 2 A | 2 A |
| Current - Hold (Ih) (Max) | 326 mA | 326 mA |
| Current - Trip (It) | 431 mA | 431 mA |
| Time to Trip | - | - |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | 2.2 Ohms | 2.2 Ohms |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) |
| Height - Seated (Max) | 0.610" (15.50mm) | 0.610" (15.50mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
