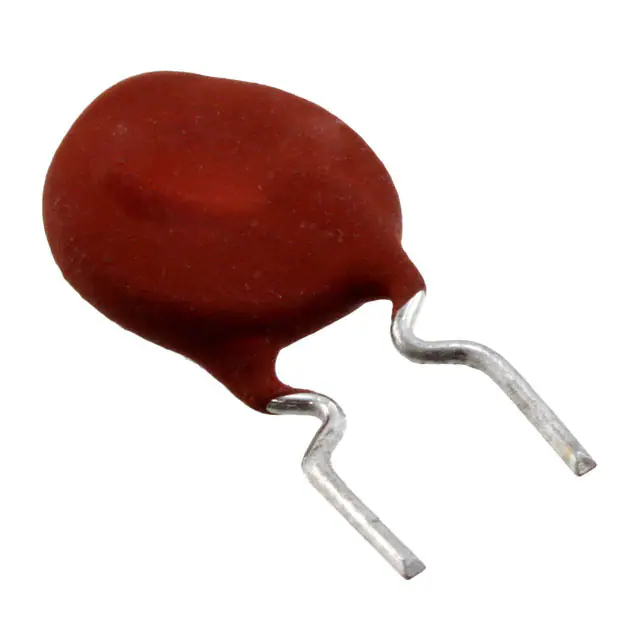

| Part Number | PTGL09AS7R6K6B51A0 | PTGL09AS7R6K6B51B0 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Ceramic | Ceramic |
| Voltage - Max | 140V | 140V |
| Current - Max | 2.2 A | 2.2 A |
| Current - Hold (Ih) (Max) | 287 mA | 287 mA |
| Current - Trip (It) | 382 mA | 382 mA |
| Time to Trip | - | - |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | 7.6 Ohms | 7.6 Ohms |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.366" Dia x 0.177" T (9.30mm x 4.50mm) | 0.366" Dia x 0.138" T (9.30mm x 3.50mm) |
| Height - Seated (Max) | 0.563" (14.30mm) | 0.563" (14.30mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
