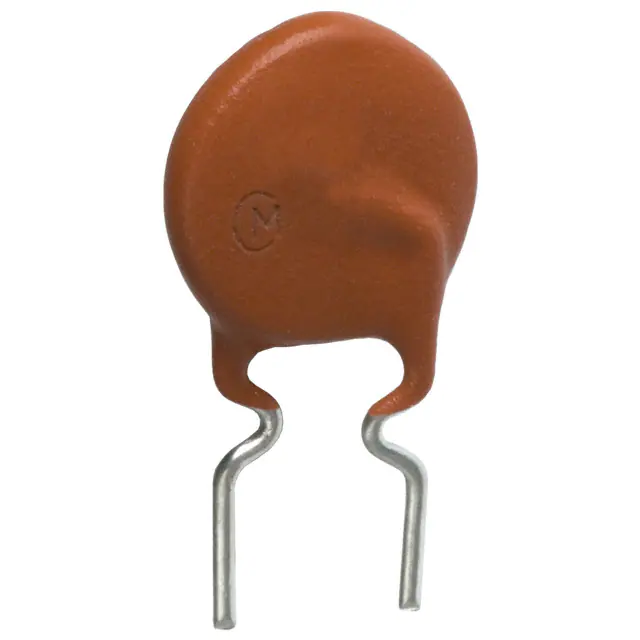

| Part Number | PTGL09AR390N0B52A0 | PTGL09AR390N0B51A0 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Ceramic | - |
| Voltage - Max | 250V | - |
| Current - Max | 600 mA | - |
| Current - Hold (Ih) (Max) | 115 mA | - |
| Current - Trip (It) | 245 mA | - |
| Time to Trip | - | - |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | 39 Ohms | - |
| Operating Temperature | -10°C ~ 60°C | - |
| Ratings | - | - |
| Mounting Type | Through Hole | - |
| Package / Case | Radial, Disc | - |
| Size / Dimension | 0.394" Dia x 0.236" T (10.00mm x 6.00mm) | - |
| Height - Seated (Max) | 0.630" (16.00mm) | - |
| Thickness (Max) | - | - |
| Lead Spacing | 0.197" (5.00mm) | - |
