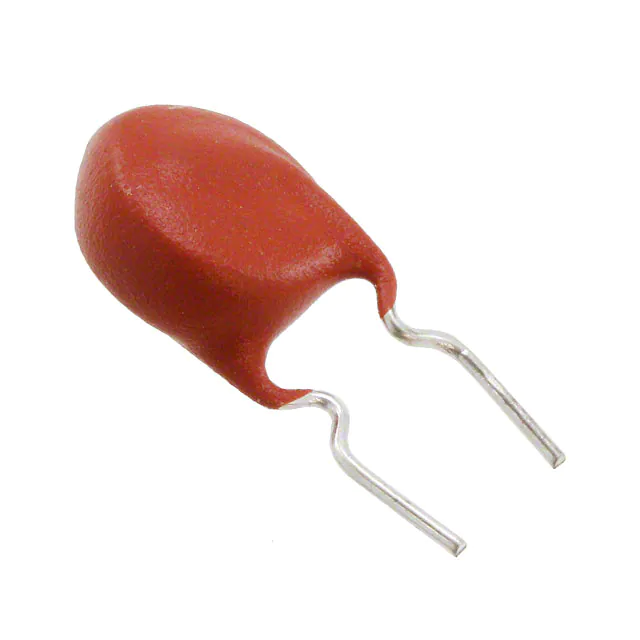

| Part Number | PTGL07AR560M9A51B0 | PTGL07AR560M9A52B0 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Ceramic | - |
| Voltage - Max | 265V | - |
| Current - Max | 800 mA | - |
| Current - Hold (Ih) (Max) | 95 mA | - |
| Current - Trip (It) | 165 mA | - |
| Time to Trip | - | - |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | 56 Ohms | - |
| Operating Temperature | -10°C ~ 60°C | - |
| Ratings | - | - |
| Mounting Type | Through Hole | - |
| Package / Case | Radial, Disc | - |
| Size / Dimension | 0.323" Dia x 0.256" T (8.20mm x 6.50mm) | - |
| Height - Seated (Max) | 0.559" (14.20mm) | - |
| Thickness (Max) | - | - |
| Lead Spacing | 0.197" (5.00mm) | - |
