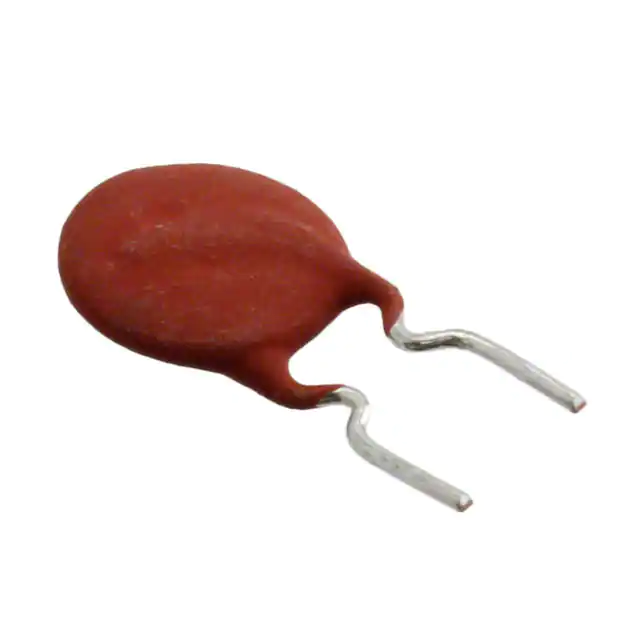

| Part Number | PTGL05AR550H4P51B0 | PTGL05AR550H4P51A0 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Ceramic | Ceramic |
| Voltage - Max | 80V | 80V |
| Current - Max | 700 mA | 700 mA |
| Current - Hold (Ih) (Max) | 62 mA | 62 mA |
| Current - Trip (It) | 115 mA | 115 mA |
| Time to Trip | - | - |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | 55 Ohms | 55 Ohms |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.217" Dia x 0.177" T (5.50mm x 4.50mm) | 0.217" Dia x 0.177" T (5.50mm x 4.50mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.453" (11.50mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
