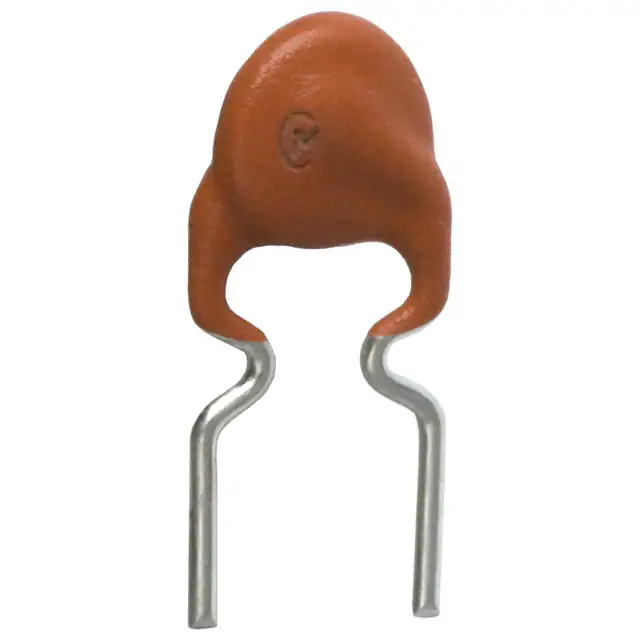

| Part Number | PTGL04AS100K2B51B0 | PTGL04AS100K2N51B0 | PTGL04AS100K3B51B0 | PTGL04AS100K2B51A0 |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic | Ceramic |
| Voltage - Max | 30V | 30V | 51V | 30V |
| Current - Max | 2 A | 1.5 A | 1 A | 2 A |
| Current - Hold (Ih) (Max) | 212 mA | 122 mA | 213 mA | 212 mA |
| Current - Trip (It) | 282 mA | 240 mA | 283 mA | 282 mA |
| Time to Trip | - | - | - | - |
| Resistance - Initial (Ri) (Min) | - | - | - | - |
| Resistance - Post Trip (R1) (Max) | - | - | - | - |
| Resistance - 25°C (Typ) | 10 Ohms | 10 Ohms | 10 Ohms | 10 Ohms |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
