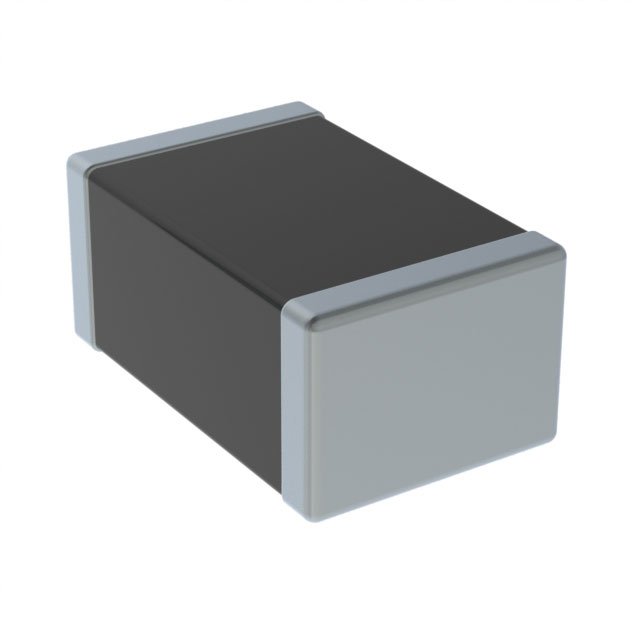

| Part Number | PRG21BC0R2MM1RA | PRG21BC2R2MM1RA | PRG21BC0R6MM1RA |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| Type | Ceramic | Ceramic | Ceramic |
| Voltage - Max | 6V | 16V | 6V |
| Current - Max | 10 A | 9 A | 10 A |
| Current - Hold (Ih) (Max) | 750 mA | 220 mA | 420 mA |
| Current - Trip (It) | 1.62 A | 500 mA | 920 mA |
| Time to Trip | - | - | - |
| Resistance - Initial (Ri) (Min) | - | - | - |
| Resistance - Post Trip (R1) (Max) | - | - | - |
| Resistance - 25°C (Typ) | 200 mOhms | 2.2 Ohms | 600 mOhms |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) |
| Lead Spacing | - | - | - |
