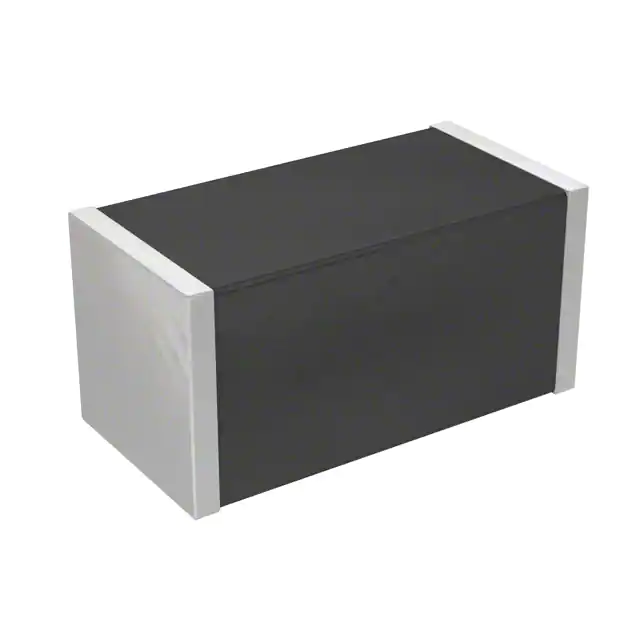

| Part Number | PRG18BC1R0MM1RB | PRG18BC100MM1RB | PRG18BC150MM1RB |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| Type | Ceramic | Ceramic | - |
| Voltage - Max | 6V | 30V | - |
| Current - Max | 7.5 A | 3.8 A | - |
| Current - Hold (Ih) (Max) | 330 mA | 80 mA | - |
| Current - Trip (It) | 740 mA | 165 mA | - |
| Time to Trip | - | - | - |
| Resistance - Initial (Ri) (Min) | - | - | - |
| Resistance - Post Trip (R1) (Max) | - | - | - |
| Resistance - 25°C (Typ) | 1 Ohms | 10 Ohms | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | - |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | - |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | - |
| Lead Spacing | - | - | - |
