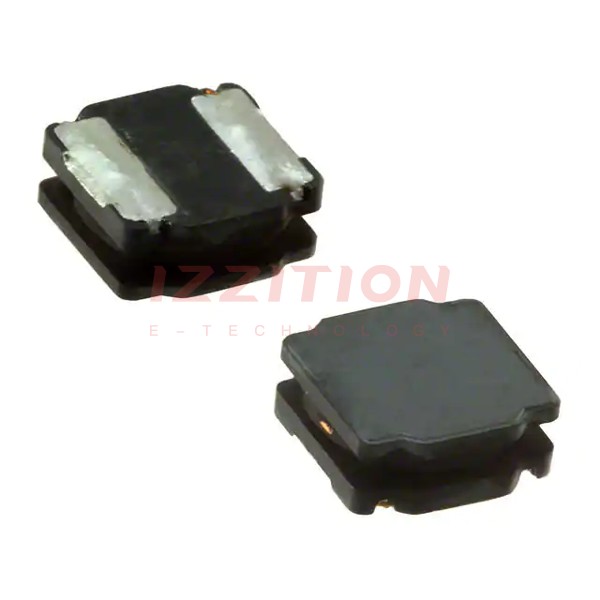

| Part Number | NFZ5BBW140LZ10L | NFZ5BBW141LZ10L | NFZ5BBW170LZ10L | NFZ5BBW100LZ10L | NFZ5BBW140LN10L |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Filter Type | - | - | - | - | - |
| Number of Lines | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 14 Ohms @ 1 MHz | 140 Ohms @ 1 MHz | 17 Ohms @ 1 MHz | 10 Ohms @ 1 MHz | 14 Ohms @ 1 MHz |
| Current Rating (Max) | 2.6A | 1.05A | 2.5A | 3A | 2.6A |
| DC Resistance (DCR) (Max) | 36mOhm | 311mOhm | 42mOhm | 29mOhm | 36mOhm |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 2020 (5050 Metric) | 2020 (5050 Metric) | 2020 (5050 Metric) | 2020 (5050 Metric) | 2020 (5050 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Features | - | - | - | - | - |
