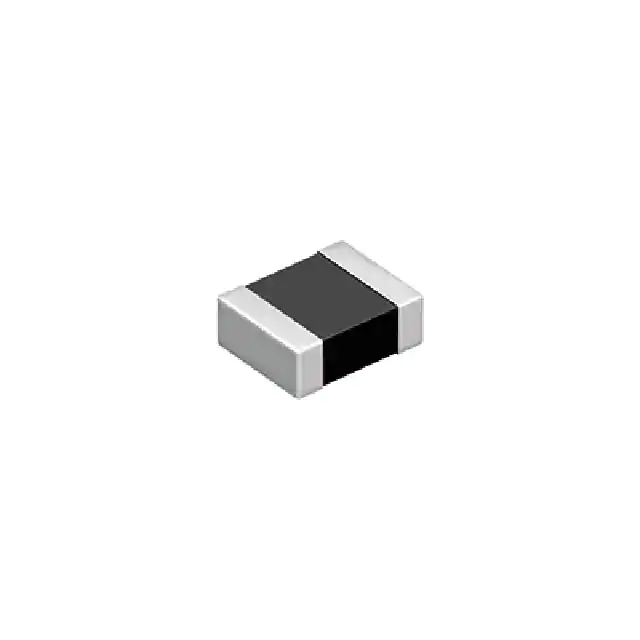

| Part Number | NFZ2MSD501SZ10L | NFZ2MSD101SZ10L | NFZ2MSD301SZ10L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Filter Type | - | - | - |
| Number of Lines | 1 | 1 | 1 |
| Impedance @ Frequency | 500 Ohms @ 100 MHz | 100 Ohms @ 100 MHz | 300 Ohms @ 100 MHz |
| Current Rating (Max) | 3.2A | 5.2A | 3.8A |
| DC Resistance (DCR) (Max) | 32mOhm | 18mOhm | 26mOhm |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Features | - | - | - |
