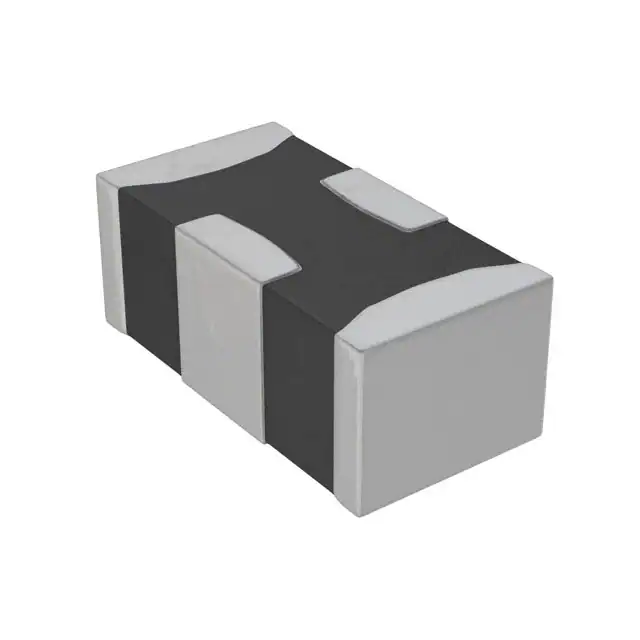

| Part Number | NFM31HK103R1H3L | NFM31HK104R1H3L | NFM31HK153R1H3L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Capacitance | 10000 pF | 0.1 µF | 0.015 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 50V | 50V | 50V |
| Current | 6 A | 6 A | 6 A |
| DC Resistance (DCR) (Max) | 1.5mOhm | 3mOhm | 1.5mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Insertion Loss | - | - | - |
| Temperature Coefficient | - | - | - |
| Ratings | - | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), 3 PC Pad | 1206 (3216 Metric), 3 PC Pad | 1206 (3216 Metric), 3 PC Pad |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
| Thread Size | - | - | - |
