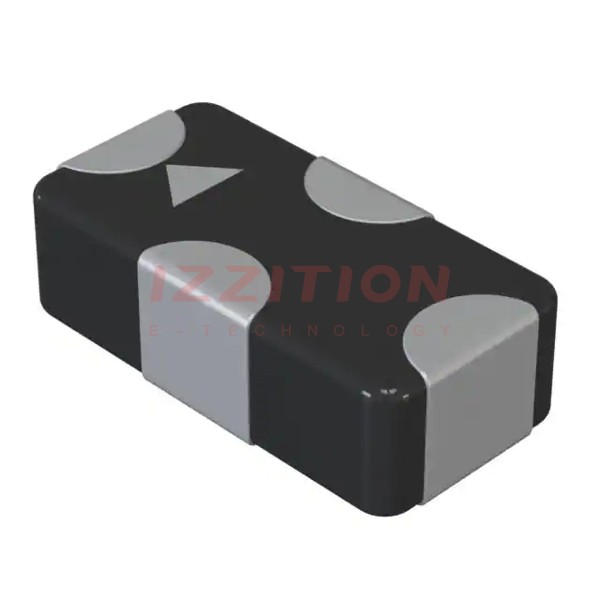

NFL15ST157X0J3D Image
×
Favorite
Compare
Add to RFQ
Share:
Murata Electronics NFL15ST157X0J3D
Manufacturer No:
NFL15ST157X0J3D
Manufacturer:
Murata Electronics
Package:
Tape & Reel (TR)
Datasheet:
NFL15ST157X0J3D Datasheet
ECAD Model:
-
Description:
FILTER LC(T) 115NH/22PF SMD
Delivery:
Payment:
Product Attributes
Type:
Low Pass
Filter Order:
3rd
Technology:
LC (T-Type)
Number of Channels:
1
Center / Cutoff Frequency:
150MHz (Cutoff)
Attenuation Value:
6dB @ 0MHz ~ 150MHz
Resistance - Channel (Ohms):
-
Current:
50 mA
Values:
L = 115nH, C = 22pF
ESD Protection:
No
Operating Temperature:
-40°C ~ 85°C
Applications:
General Purpose
Voltage - Rated:
6.3V
Mounting Type:
Surface Mount
Package / Case:
0402 (1005 Metric), 4 PC Pad
Size / Dimension:
0.039" L x 0.020" W (1.00mm x 0.50mm)
Height:
0.014" (0.35mm)
0
Remaining
View Similar
In Stock
UnitPrice:
-
Quantity:
473
Please send RFQ , we will respond immediately.
