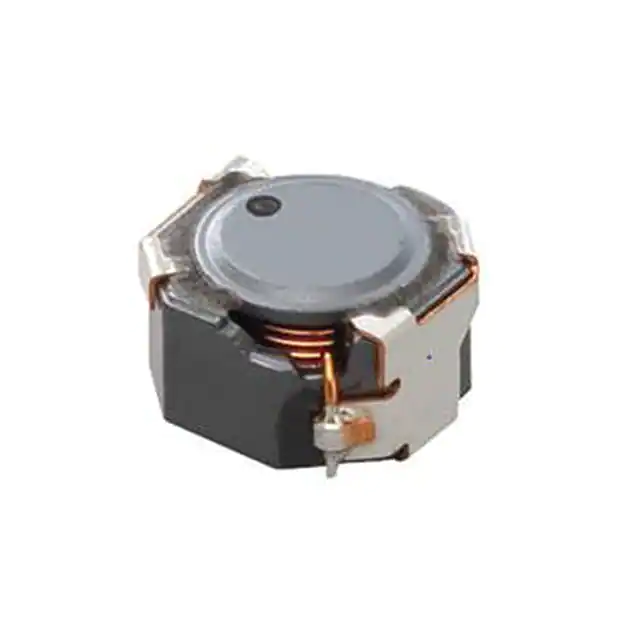

| Part Number | MDH6045C-330MA=P3 | MDH6045C-330MB=P3 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Not For New Designs | Not For New Designs |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 33 µH | 33 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.2 A | 1.3 A |
| Current - Saturation (Isat) | 1A | 960mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 130mOhm | 105mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.248" L x 0.236" W (6.30mm x 6.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) |
