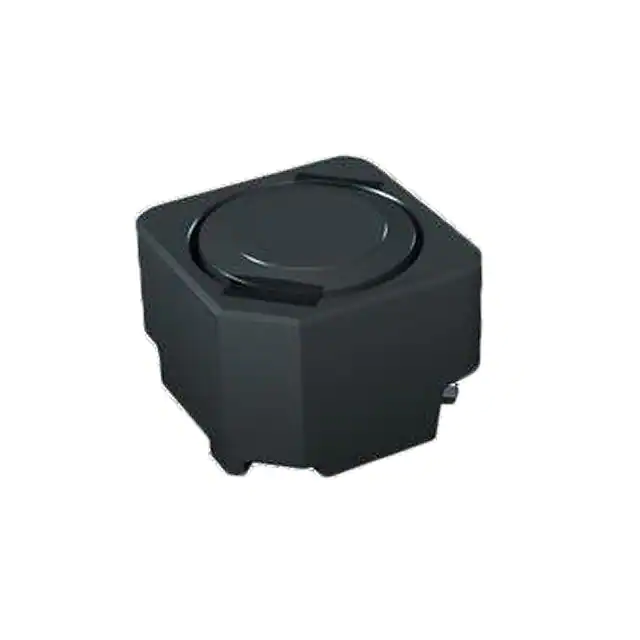

| Part Number | MBH7045C-220MA=P3 | MBH7045C-220MB=P3 | MBH7045C-221MA=P3 | MBH6045C-220MA=P3 |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH | 220 µH | 22 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.9 A | 1.8 A | 650 mA | 1.2 A |
| Current - Saturation (Isat) | 1.4A | 1.8A | 450mA | 2A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 73.2mOhm Max | 84mOhm Max | 624mOhm Max | 166.8mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | - | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.244" L x 0.244" W (6.20mm x 6.20mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
