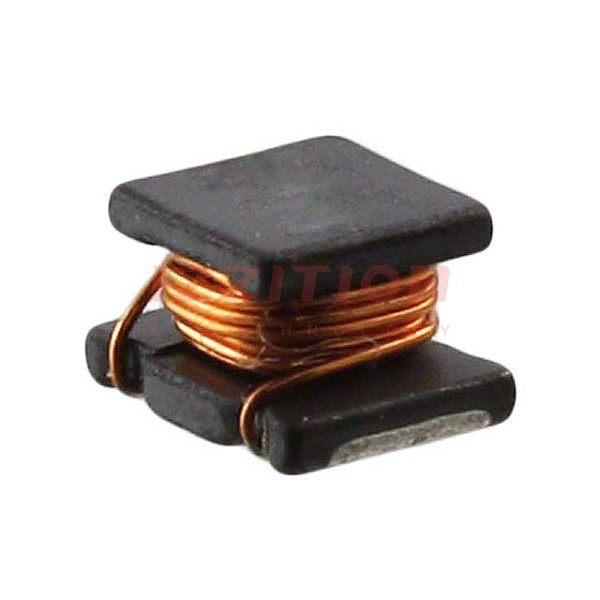

| Part Number | LQW31HNR10J03L | LQW31HNR10K03L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | - |
| Inductance | 100 nH | 100 nH |
| Tolerance | ±5% | ±10% |
| Current Rating (Amps) | 230 mA | 230 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 300mOhm Max | 300mOhm Max |
| Q @ Freq | 60 @ 436MHz | 60 @ 436MHz |
| Frequency - Self Resonant | 900MHz | 900MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
