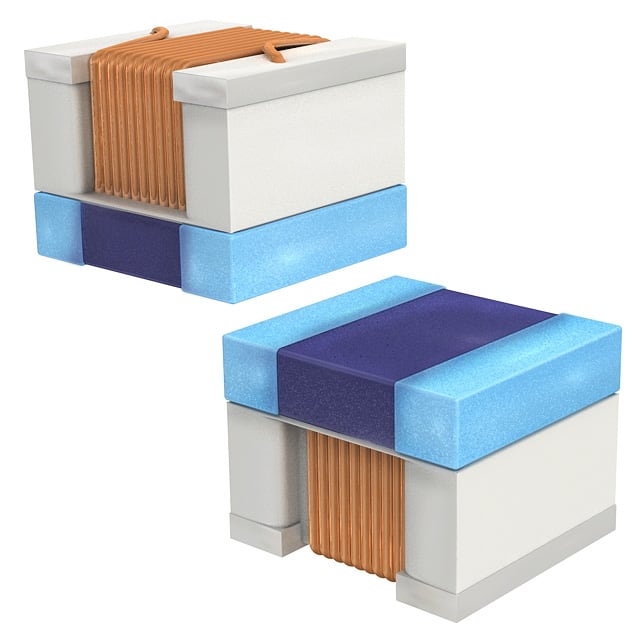

| Part Number | LQW2UASR10G0CL | LQW2UASR12G0CL | LQW2UASR18G0CL | LQW2UASR15G0CL | LQW2UASR10J0CL | LQW2UASR10F0CL | LQW2UASR10G00L |
|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | - |
| Inductance | 100 nH | 120 nH | 180 nH | 150 nH | 100 nH | 100 nH | 100 nH |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±5% | ±1% | ±2% |
| Current Rating (Amps) | 650 mA | 650 mA | 620 mA | 580 mA | 650 mA | 650 mA | 650 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 560mOhm Max | 630mOhm Max | 770mOhm Max | 700mOhm Max | 560mOhm Max | 560mOhm Max | 560mOhm Max |
| Q @ Freq | 60 @ 350MHz | 60 @ 350MHz | 45 @ 100MHz | 45 @ 100MHz | 60 @ 350MHz | 60 @ 350MHz | 60 @ 350MHz |
| Frequency - Self Resonant | 1GHz | 950MHz | 750MHz | 850MHz | 1GHz | 1GHz | 1GHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz | 25 MHz | 25 MHz | 25 MHz | 25 MHz | 25 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 (2520 Metric) |
| Size / Dimension | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) |
| Height - Seated (Max) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) |
