Please send RFQ , we will respond immediately.

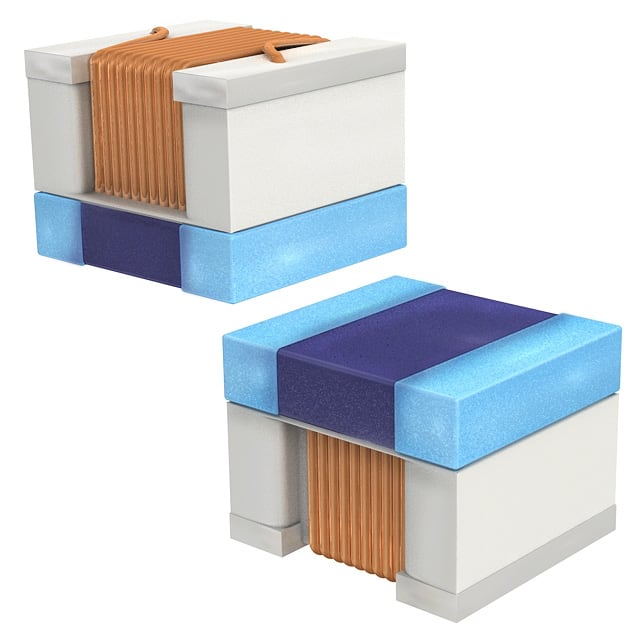

| Part Number | LQW2UAS82NJ0CL | LQW2UAS12NJ0CL | LQW2UAS22NJ0CL | LQW2UAS82NF0CL | LQW2UAS82NG0CL | LQW2UAS82NJ00L |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Air |
| Inductance | 82 nH | 12 nH | 22 nH | 82 nH | 82 nH | 82 nH |
| Tolerance | ±5% | ±5% | ±5% | ±1% | ±2% | ±5% |
| Current Rating (Amps) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 220mOhm Max | 90mOhm Max | 120mOhm Max | 220mOhm Max | 220mOhm Max | 220mOhm Max |
| Q @ Freq | 60 @ 350MHz | 50 @ 500MHz | 55 @ 350MHz | 60 @ 350MHz | 60 @ 350MHz | 60 @ 350MHz |
| Frequency - Self Resonant | 1GHz | 3.3GHz | 2.4GHz | 1GHz | 1GHz | 1GHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz | 50 MHz | 50 MHz | 50 MHz | 50 MHz | 50 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 (2520 Metric) |
| Size / Dimension | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) |
| Height - Seated (Max) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) |
