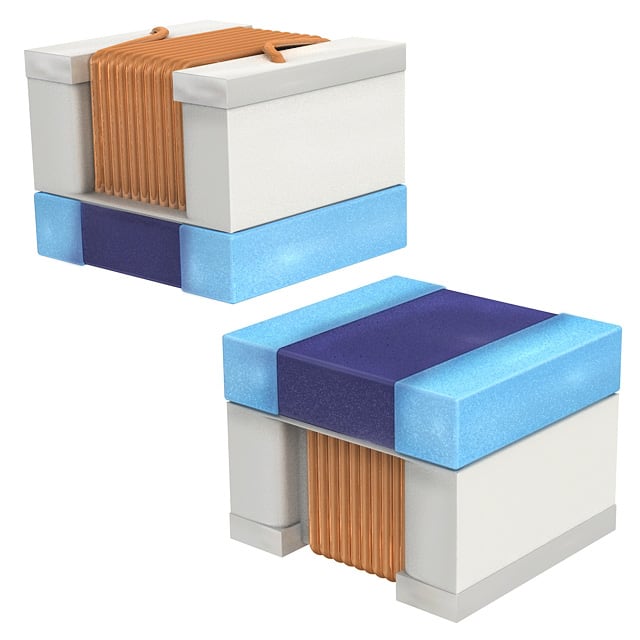

| Part Number | LQW2UAS68NJ0CL | LQW2UAS18NJ0CL | LQW2UAS68NF0CL | LQW2UAS68NG0CL | LQW2UAS68NJ00L |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Air |
| Inductance | 68 nH | 18 nH | 68 nH | 68 nH | 68 nH |
| Tolerance | ±5% | ±5% | ±1% | ±2% | ±5% |
| Current Rating (Amps) | 1 A | 1 A | 1 A | 1 A | 1 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 200mOhm Max | 110mOhm Max | 200mOhm Max | 200mOhm Max | 200mOhm Max |
| Q @ Freq | 65 @ 350MHz | 50 @ 350MHz | 65 @ 350MHz | 65 @ 350MHz | 65 @ 350MHz |
| Frequency - Self Resonant | 1.3GHz | 2.5GHz | 1.3GHz | 1.3GHz | 1.3GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz | 50 MHz | 50 MHz | 50 MHz | 50 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 | 1008 | 1008 | 1008 (2520 Metric) |
| Size / Dimension | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) |
| Height - Seated (Max) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) |
