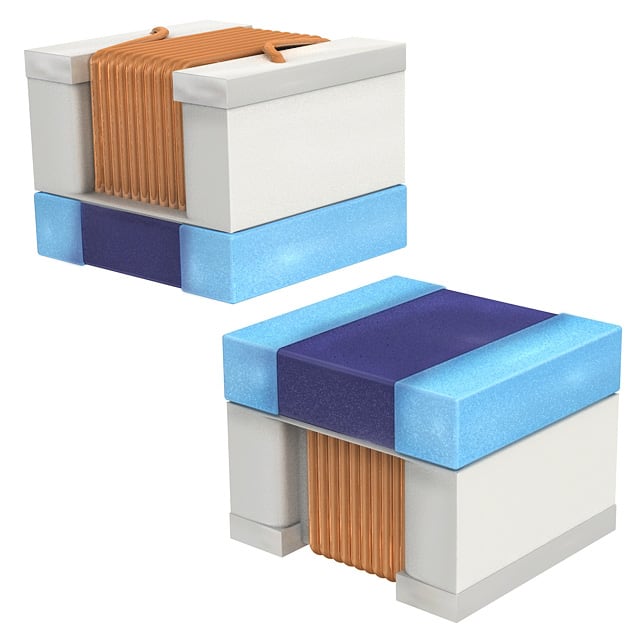

| Part Number | LQW2UAS2R7J0CL | LQW2UAS4R7J0CL | LQW2UAS2R2J0CL | LQW2UAS2R7G0CL | LQW2UAS2R7J00L |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Air |
| Inductance | 2.7 µH | 4.7 µH | 2.2 µH | 2.7 µH | 2.7 µH |
| Tolerance | ±5% | ±5% | ±5% | ±2% | ±5% |
| Current Rating (Amps) | 290 mA | 260 mA | 280 mA | 290 mA | 290 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 3.2Ohm Max | 4Ohm Max | 2.8Ohm Max | 3.2Ohm Max | 3.2Ohm Max |
| Q @ Freq | 22 @ 25MHz | 20 @ 25MHz | 28 @ 50MHz | 22 @ 25MHz | 22 @ 25MHz |
| Frequency - Self Resonant | 110MHz | 60MHz | 130MHz | 110MHz | 110MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 | 1008 | 1008 | 1008 (2520 Metric) |
| Size / Dimension | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) |
| Height - Seated (Max) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) |
