Please send RFQ , we will respond immediately.

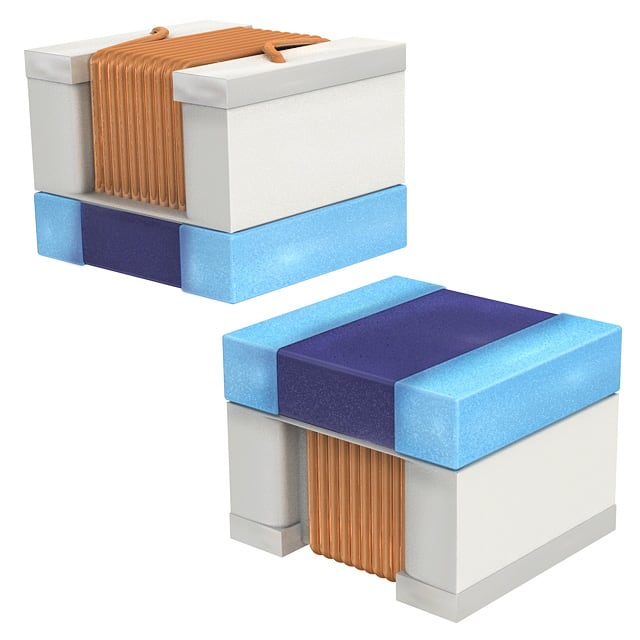

| Part Number | LQW2UAS1R0J0CL | LQW2UAS1R5J0CL | LQW2UAS1R8J0CL | LQW2UAS1R2J0CL | LQW2UAS1R0F0CL | LQW2UAS1R0G0CL | LQW2UAS1R0J00L |
|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Air |
| Inductance | 1 µH | 1.5 µH | 1.8 µH | 1.2 µH | 1 µH | 1 µH | 1 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±1% | ±2% | ±5% |
| Current Rating (Amps) | 370 mA | 330 mA | 300 mA | 310 mA | 370 mA | 370 mA | 370 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.75Ohm Max | 2.3Ohm Max | 2.6Ohm Max | 2Ohm Max | 1.75Ohm Max | 1.75Ohm Max | 1.75Ohm Max |
| Q @ Freq | 35 @ 50MHz | 28 @ 50MHz | 28 @ 50MHz | 35 @ 50MHz | 35 @ 50MHz | 35 @ 50MHz | 35 @ 50MHz |
| Frequency - Self Resonant | 290MHz | 120MHz | 140MHz | 210MHz | 290MHz | 290MHz | 290MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz | 25 MHz | 25 MHz | 25 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 (2520 Metric) |
| Size / Dimension | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.103" L x 0.096" W (2.62mm x 2.45mm) |
| Height - Seated (Max) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) |
