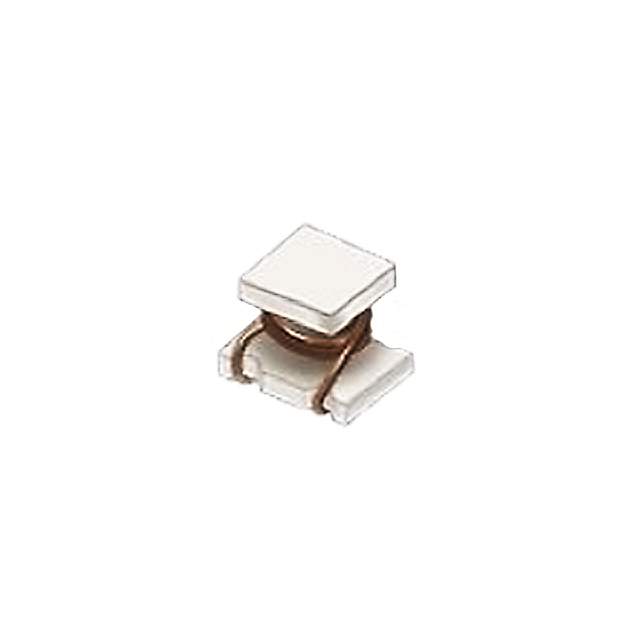

| Part Number | LQW2BHNR47K03L | LQW2BHNR27K03L | LQW2BHNR47J03L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 470 nH | 270 nH | 470 nH |
| Tolerance | ±10% | ±10% | ±5% |
| Current Rating (Amps) | 160 mA | 190 mA | 160 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.8Ohm Max | 2Ohm Max | 2.8Ohm Max |
| Q @ Freq | 15 @ 25.2MHz | 15 @ 25.2MHz | 15 @ 25.2MHz |
| Frequency - Self Resonant | 350MHz | 550MHz | 350MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 MHz | 10 MHz | 100 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.079" L x 0.059" W (2.00mm x 1.50mm) |
| Height - Seated (Max) | 0.070" (1.78mm) | 0.070" (1.78mm) | 0.070" (1.78mm) |
