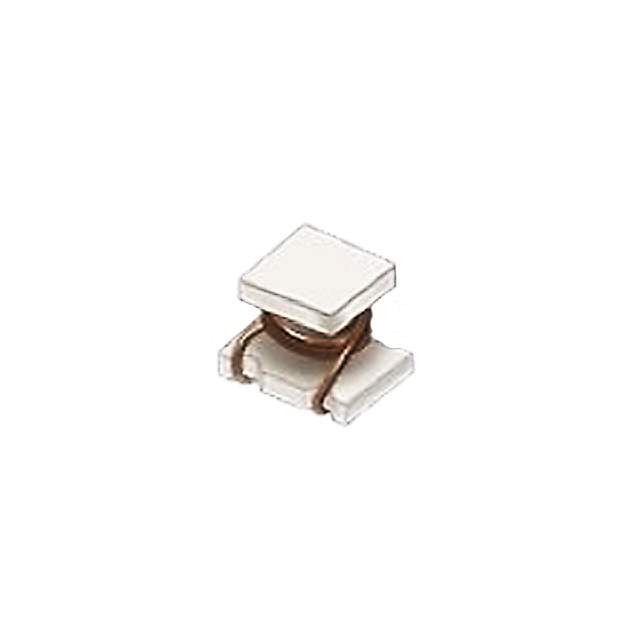

| Part Number | LQW2BHN3N3D03L | LQW2BHN3N3D13L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic |
| Inductance | 3.3 nH | 3.3 nH |
| Tolerance | ±0.5nH | ±0.5nH |
| Current Rating (Amps) | 910 mA | 1.7 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 50mOhm Max | 20mOhm Max |
| Q @ Freq | 10 @ 250MHz | 20 @ 250MHz |
| Frequency - Self Resonant | 6GHz | 6GHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.079" L x 0.059" W (2.00mm x 1.50mm) |
| Height - Seated (Max) | 0.070" (1.78mm) | 0.070" (1.78mm) |
