Please send RFQ , we will respond immediately.

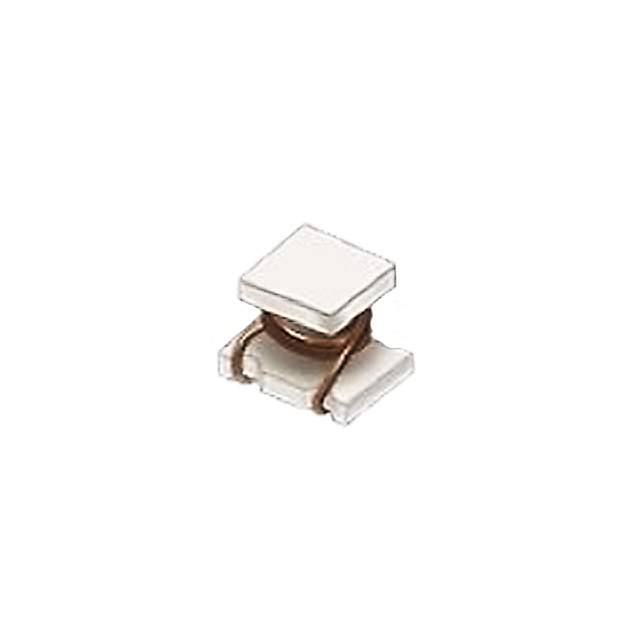

| Part Number | LQW2BHN33NG03L | LQW2BHN33NJ03L | LQW2BHN39NG03L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 33 nH | 33 nH | 39 nH |
| Tolerance | ±2% | ±5% | ±2% |
| Current Rating (Amps) | 570 mA | 570 mA | 730 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 150mOhm Max | 150mOhm Max | 90mOhm Max |
| Q @ Freq | 40 @ 250MHz | 40 @ 250MHz | 40 @ 250MHz |
| Frequency - Self Resonant | 1.9GHz | 1.9GHz | 1.7GHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.079" L x 0.059" W (2.00mm x 1.50mm) |
| Height - Seated (Max) | 0.070" (1.78mm) | 0.070" (1.78mm) | 0.070" (1.78mm) |
