Please send RFQ , we will respond immediately.

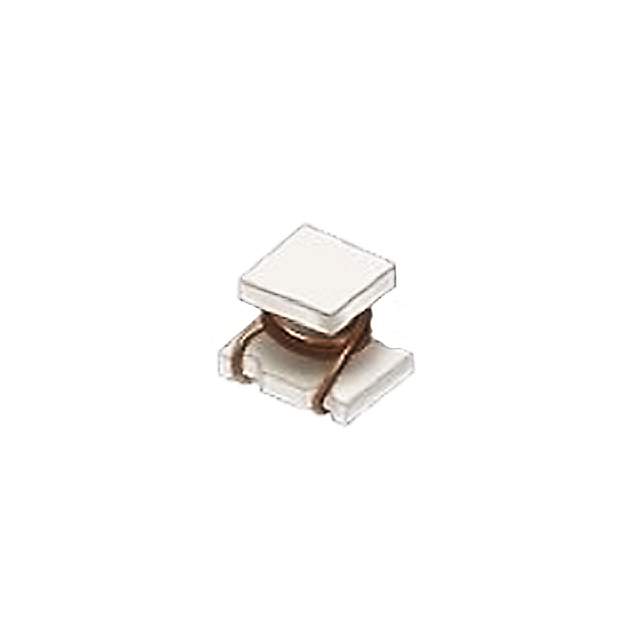

| Part Number | LQW2BHN10NJ13L | LQW2BHN10NJ03L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic |
| Inductance | 10 nH | 10 nH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 1.32 A | 1.32 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 30mOhm Max | 30mOhm Max |
| Q @ Freq | 35 @ 250MHz | 30 @ 250MHz |
| Frequency - Self Resonant | 3.3GHz | 3.3GHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.079" L x 0.059" W (2.00mm x 1.50mm) |
| Height - Seated (Max) | 0.070" (1.78mm) | 0.070" (1.78mm) |
