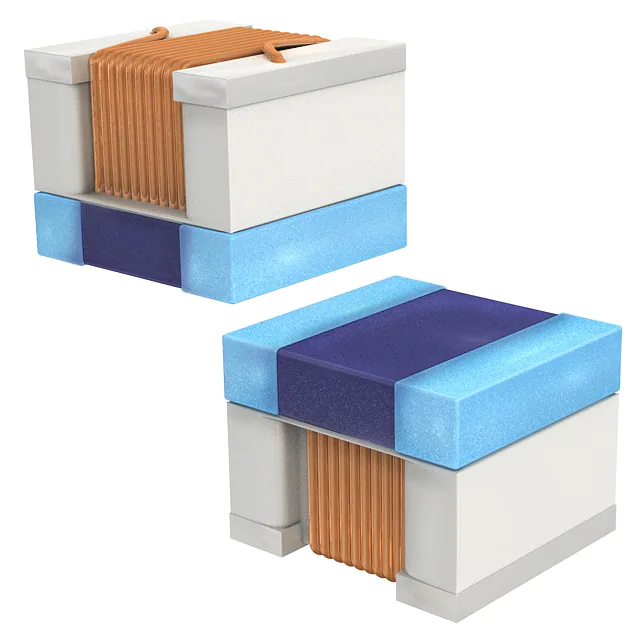

| Part Number | LQW2BASR47J00L | LQW2BASR27J00L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | Air | Air |
| Inductance | 470 nH | 270 nH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 250 mA | 350 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.76Ohm Max | 1Ohm Max |
| Q @ Freq | 33 @ 100MHz | 48 @ 250MHz |
| Frequency - Self Resonant | 300MHz | 730MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2015 Metric) | 0805 (2015 Metric) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.082" L x 0.060" W (2.09mm x 1.53mm) |
| Height - Seated (Max) | 0.060" (1.52mm) | 0.060" (1.52mm) |
