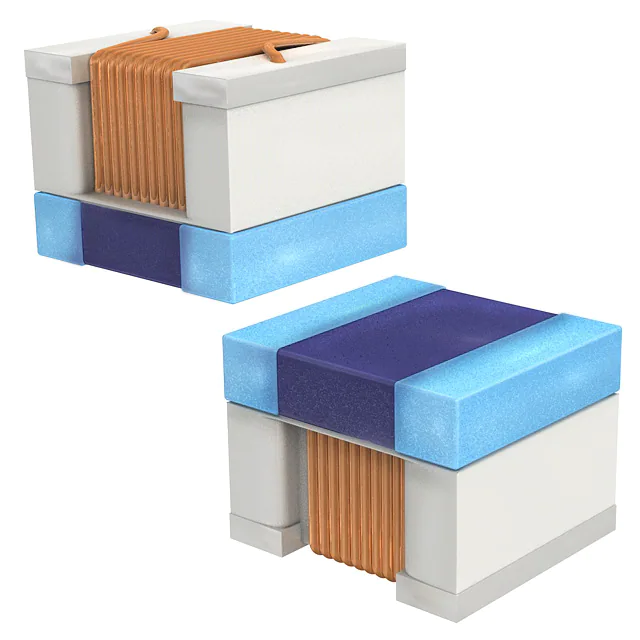

| Part Number | LQW2BAS3N0J00L | LQW2BAS6N0J00L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | Air | - |
| Inductance | 3 nH | 6 nH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 800 mA | 600 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 60mOhm Max | 30mOhm Max |
| Q @ Freq | 65 @ 1.5GHz | 80 @ 1.5GHz |
| Frequency - Self Resonant | 12.2GHz | 4.5GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz | 250 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2015 Metric) | 0805 (2015 Metric) |
| Supplier Device Package | - | 0805 |
| Size / Dimension | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.082" L x 0.060" W (2.09mm x 1.53mm) |
| Height - Seated (Max) | 0.060" (1.52mm) | 0.060" (1.52mm) |
