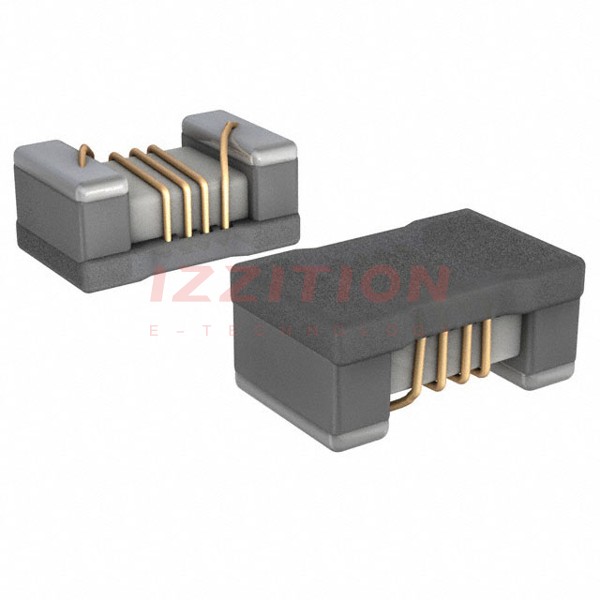

| Part Number | LQW21HN1R5J00L | LQW21HN1R8J00L | LQW21HN1R0J00L | LQW21HN1R2J00L |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1.8 µH | 1 µH | 1.2 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 85 mA | 80 mA | 115 mA | 100 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 5.33Ohm Max | 5.85Ohm Max | 2.86Ohm Max | 3.12Ohm Max |
| Q @ Freq | 35 @ 100MHz | 35 @ 100MHz | 35 @ 100MHz | 30 @ 100MHz |
| Frequency - Self Resonant | 350MHz | 320MHz | 450MHz | 400MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 MHz | 10 MHz | 10 MHz | 10 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
