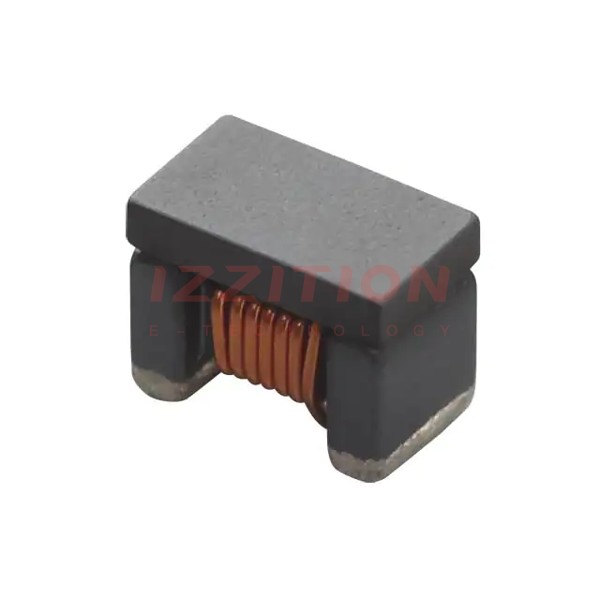

| Part Number | LQW21FT2R0M0HL | LQW21FT1R0M0HL |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 400 mA | 600 mA |
| Current - Saturation (Isat) | 450mA | 700mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 290mOhm Max | 130mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 230MHz | 320MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) |
