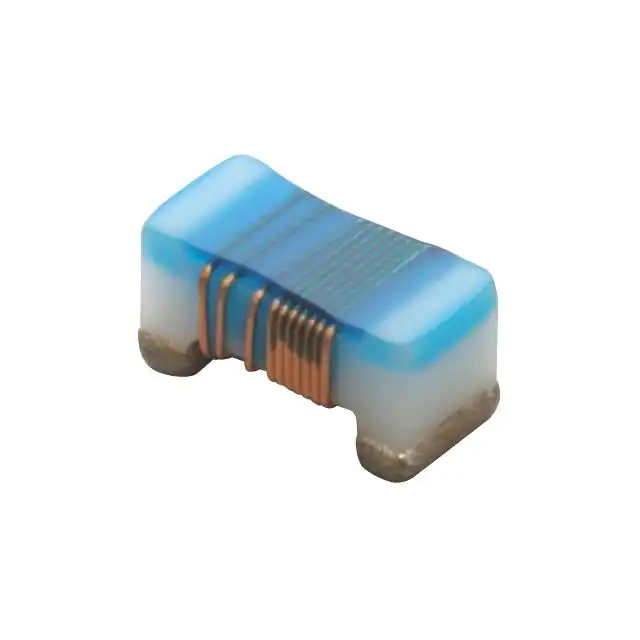

| Part Number | LQW18AS4N3G0CD | LQW18AS4N3G0ZD | LQW18AS4N3J0CD |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | Air | Non-Magnetic | Air |
| Inductance | 4.3 nH | 4.3 nH | 4.3 nH |
| Tolerance | ±2% | ±2% | ±5% |
| Current Rating (Amps) | 700 mA | 700 mA | 700 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 63mOhm Max | 63mOhm Max | 63mOhm Max |
| Q @ Freq | 22 @ 250MHz | 22 @ 250MHz | 22 @ 250MHz |
| Frequency - Self Resonant | 5.9GHz | 5.9GHz | 5.9GHz |
| Ratings | - | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 250 MHz | 250 MHz | 250 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 (1608 Metric) | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
