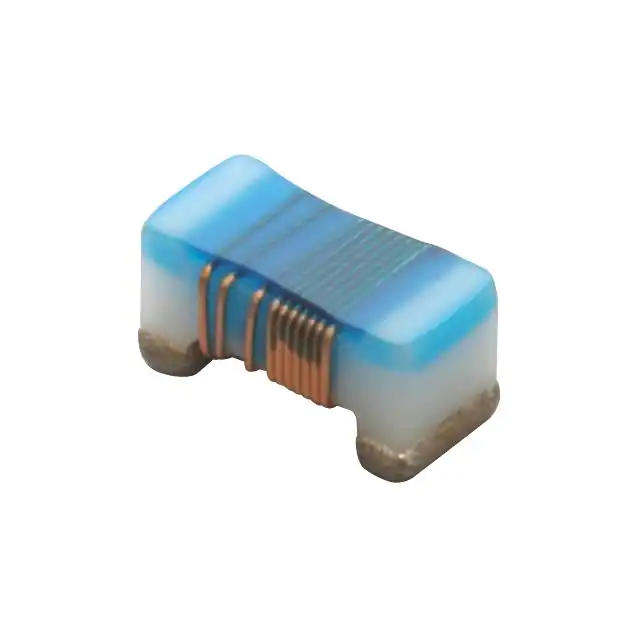

| Part Number | LQW18AN5N6D10D | LQW18AN5N6D00D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic |
| Inductance | 5.6 nH | 5.6 nH |
| Tolerance | ±0.5nH | ±0.5nH |
| Current Rating (Amps) | 900 mA | 750 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 45mOhm Max | 82mOhm Max |
| Q @ Freq | 38 @ 250MHz | 35 @ 250MHz |
| Frequency - Self Resonant | 10GHz | 6GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
